AirFitTM 20 series - InfinitySealTM

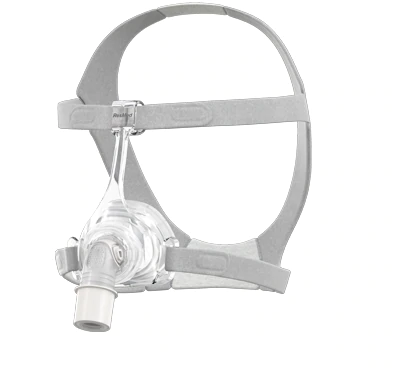

AirFit N20 Classic

  • InfinitySeal™ silicone cushion designed to seal robustly on a wide range of facial shapes or sizes1
  • Adaptive frame with forehead support is designed to tolerate movement and still deliver on performance
  • Plush headgear designed for extra softness and stability
  • Classic Velcro™ tabs and slide-in hooks for simple, secure fitting
360 views
Buy now
Support
mask_blue (2)

InfinitySeal fit technology

Regardless of your face shape or size, the InfinitySeal silicone cushion is designed to provide a secure fit and flexible seal.

Simple to use

Fitting and everyday handling are made easy with the mask's simple fastenings and classic design.

Support

Supporting you
Supporting your patients
Swipe

Sizing

The AirFit N20 Classic sizing guide is designed to help find the right fit for your patients.

Step 1 - We recommend using the guide included in the mask box. You can also download a copy of the sizing guide here.

Step 2 - Try fitting your patient's nose into each sizing slot: small, medium and large.

Step 3 - Ensure the suppped cushion matches the patient's size. Each size cushion easily cpcks into the same mask frame.

Fitting

Start with the lower straps unhooked from the frame.

With your patient holding the mask against their face, pull the headgear over their head.

Bring lower straps below their ears and loop into the mask frame.

Adjust Velcro tabs on upper headgear straps until the mask feels even and stable. Do not overtighten.

Repeat step 4 with the lower straps.

For information on mask maintenance and care, visit the Supporting your patients section of this website.

These instructions are for general information only. For full details, consult the User Guide.

Fitting

Start with the lower straps unhooked from the frame.

With your patient holding the mask against their face, pull the headgear over their head.

Bring lower straps below their ears and loop into the mask frame.

Adjust Velcro tabs on upper headgear straps until the mask feels even and stable. Do not overtighten.

Repeat step 4 with the lower straps.

For information on mask maintenance and care, visit the Supporting your patients section of this website.

These instructions are for general information only. For full details, consult the User Guide.

Managing leak with your AirFit N20 Classic

  • Leak often occurs when your mask's seal is compromised by movement, incorrect fitting or improper sizing.
  • Step 1 - To find a source of leak, run your finger along the edge of your mask seal to locate where air is escaping.
  • Step 2 - Leak in the upper part of your mask can be resolved by adjusting your upper straps.
  • Step 3 - Leak in the lower part of the mask can be resolved with your lower straps.
  • Step 4 - If leak persists, reseal by briefly pulling your mask away from your face and letting your cushion reinflate.
  • If these steps do not resolve the leak, you may need a different size mask. Try using our sizing guide or speaking to your healthcare provider about different size masks.

Cleaning your AirFit N20 Classic (Daily)

  • Disassemble mask.
  • Soak cushion and elbow in warm water (approximately 30°C) using mild liquid detergent (such as dishwashing liquid) for up to ten minutes. Do not use strong chemicals. To ensure a thorough clean, shake components in water.
  • Clean components with a soft bristle brush.
  • Rinse components under warm running water.
  • Inspect each component to ensure it is clean and free of detergent residue. Wash and rinse again if necessary.
  • Leave components to air dry out of direct sunlight.

Cleaning your AirFit N20 Classic (Weekly)

  • Disassemble mask.
  • Soak headgear and frame in warm water (approximately 30°C) using a mild liquid detergent (such as dishwashing liquid) for up to ten minutes. Do not use strong chemicals. To ensure a thorough clean, squeeze headgear under water.
  • Rinse components under warm water. Squeeze headgear repeatedly to rinse out detergent. Inspect each component to ensure it is clean and free of detergent residue. Wash and rinse again if necessary.
  • Squeeze headgear to remove excess water.
  • Leave components to air dry out of direct sunlight.

Disassembpng your AirFit N20 Classic

Undo lower headgear straps.

Undo upper headgear straps.

Remove elbow from frame.

Pull cushion away from frame.

Assembpng your AirFit N20 Classic

Push cushion into frame. Mask size indicator should face downwards.

Attach top straps to mask frame.

Attach elbow.

ResMed’s myAir – stay on track

For further support, our free myAir program offers ongoing care and guidance via personalized therapy tips, coaching and advice.

More information
Warranty & Servicing

If you have any questions regarding warranty information on our masks, please contact our local customer service team.

More information
Getting started – think positive

Starting therapy can seem daunting. Let us help you get started with the right frame of mind.

More information

An ecosystem of solutions for individual answers

From diagnostics and healthcare informatics to therapy devices and masks, our solution can help you get a better night's rest. Crafted to offer both confidence and flexibility, our products allow for a high-quality therapy experience catered to your needs.

Our device, mask and accessory ranges, together with our online support program myAir™, enable you to easily customise your therapy experience to your preferences.

device_icon
Devices
mask_icon
Masks
accessories_icon
Accessories
mobile_icon
Connected care

References

1

ResMed AirFit N20 internal global fitting study of 159 existing ResMed patients, conducted 12/11/2015 ; ID A3697629.
