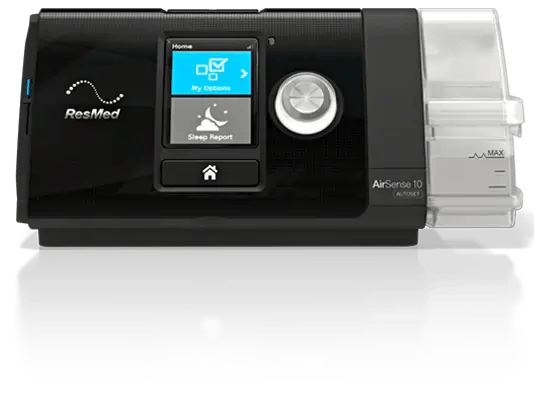

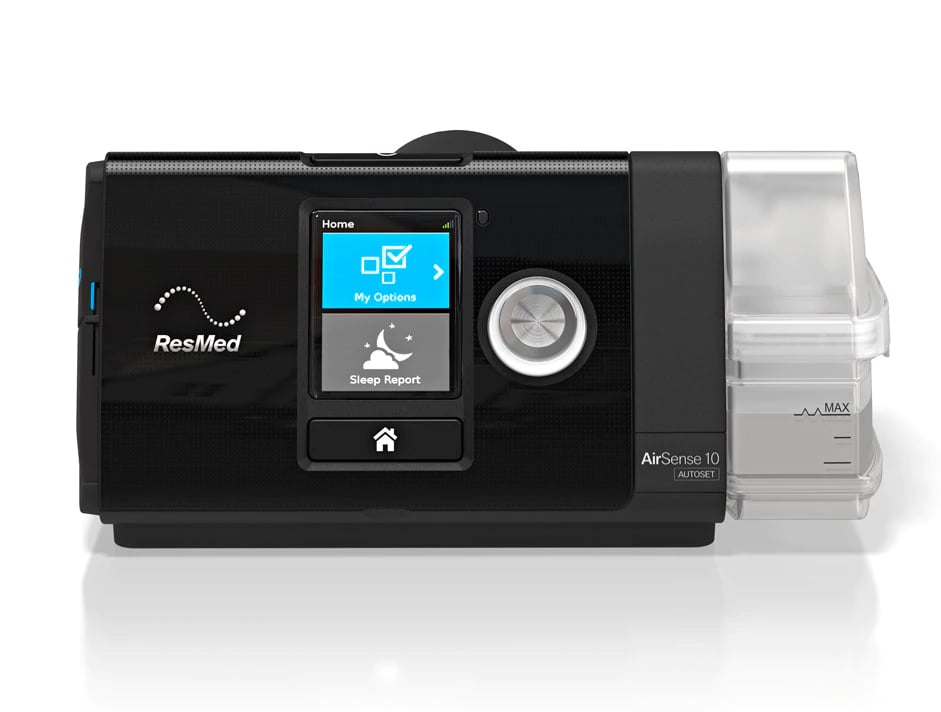

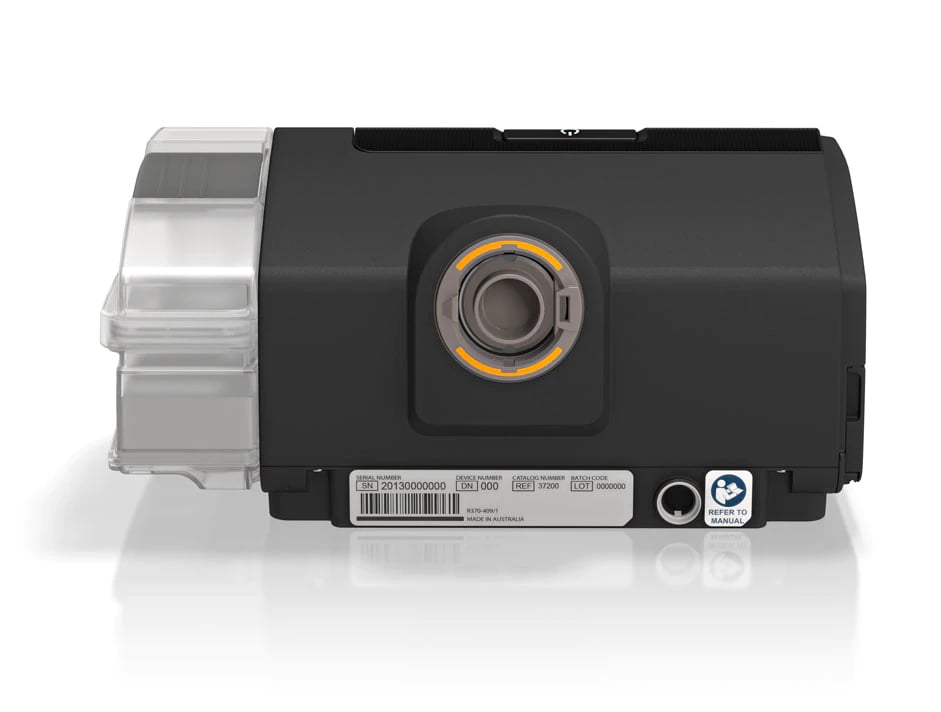

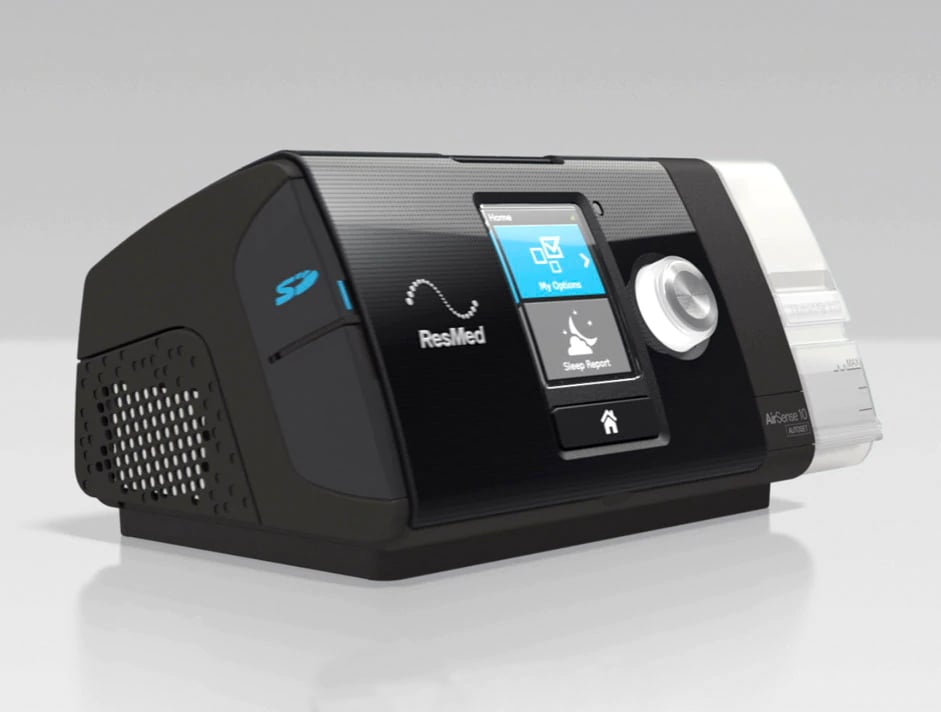

AirSenseTM 10 Elite

The AirSense 10 Elite is an advanced fixed-pressure therapy device with an integrated humidifier. It is designed to be intuitive and easy-to-use. With no complicated menus or settings to navigate, patients can simply plug in their device and press Start.

Current AirSense 10 devices do not have built-in cellular connectivity functionality. This means the device has no wireless data transmission capability with myAir, ResMed's online support program and app.

Advanced clinical insights

The AirSense 10 Elite can detect indications of central sleep apnea and Cheyne-Stokes respiration. By differentiating between different types of sleep disordered breathing, you can be confident that your patients are receiving appropriate therapy.

AirSense-10-AutoSet_KF_02_B2B_01

Intelligent detection

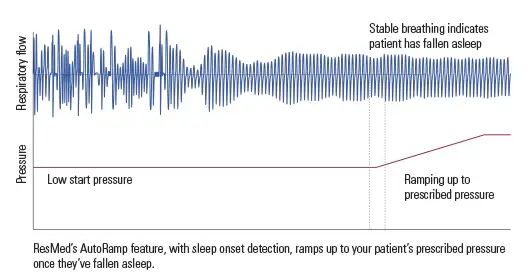

ResMed’s AutoRamp™ feature with sleep onset detection starts by delivering a low pressure for greater patient comfort. Then, once the patient falls asleep, it increases the pressure to the prescribed level.

AirSense10_CPAP_KF_01_B2B_01

Other features

  • Built-in ambient light sensor adjusts the brightness of the screen based on the light in the room. So if patients need to get up during the night, the screen’s back light won’t disrupt their bed partner.
  • Easy-Breathe motor is designed to reduce the sound of the device, offering patients and their bed partners a more peaceful night’s sleep.
  • Expiratory pressure relief (EPR™). Designed to make therapy more comfortable, EPR maintains optimal treatment for the patient during inhalation and reduces the delivered mask pressure during exhalation.
  • Consistent humidification throughout the night with the integrated HumidAir™ humidifier with advanced Climate Control technology helps patients adjust to treatment and use therapy longer.

humidification

Humidification (AU)

2750693505001_3739418284001_vs-53f42446e4b0a7d10117e8a0-1083021586001

AutoRamp (AU)

2750693505001_3739424553001_vs-53f423dce4b059419f8514b8-782203298001

CSA and CSR (AU)

Made to work together

Devices

AirSense 10 Elite

Masks-AirFit_P10_heroimage

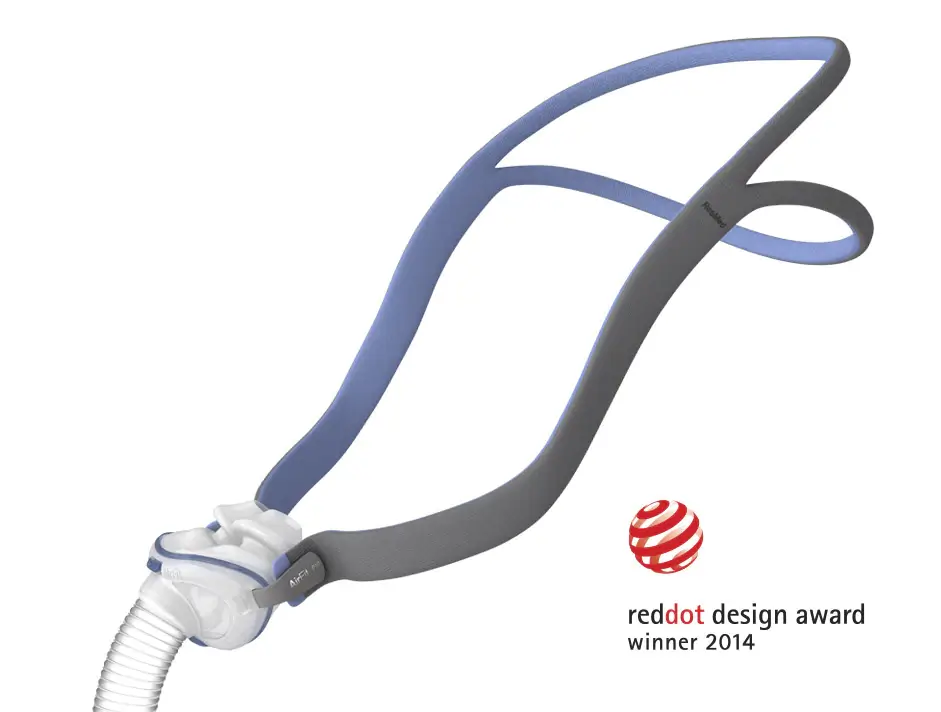

AirFit™ P10

Nasal Pillows Mask.

Masks-AirFitP10-For-Her_heroimage (2)

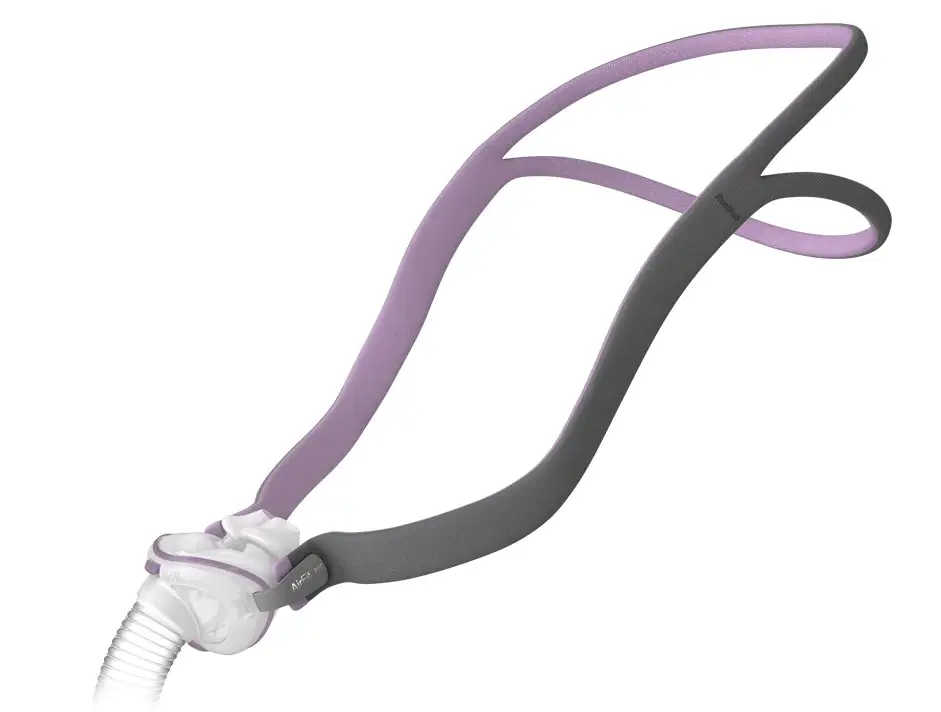

AirFit™ P10 for Her

Nasal Pillows Mask in a stylish, female design.

Accessories_ClimateLine-Air_heroimage (2)

ClimateLineAir™ heated tube

The ClimateLineAir heated tube is the key that unlocks ResMed's Climate Control solution for the AirSense 10 and AirCurve 10 series of devices.

SlimLine_1

SlimLine™ Tubing

The SlimLine small diameter air tube is exceptionally light and flexible, which can reduce tube drag.

Hospital-Accessories-ClimateLine_heroimage (1)

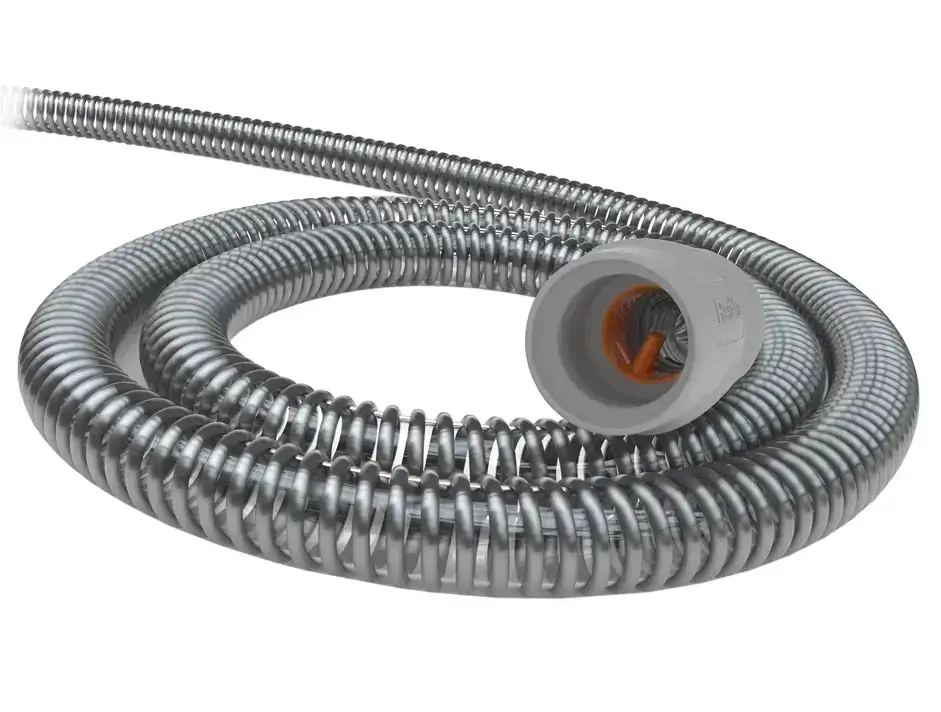

ClimateLine™

The ClimateLine heated tube is the key technology in the Climate Control system.

Accessories_HumidAir_heroimage (2)

HumidAir™ Heated Humidifier

Designed to seamlessly integrate with the device, the HumidAir heated humidifier offers relief from dryness and congestion.

For a fully integrated approach to patient care, prescribe ResMed Air Solutions products.

Functional features

  CPAP Elite AutoSet AutoSet for Her
CPAP
AutoSet
AutoSet for Her
Cheyne-Stokes respiration detection
Central apnea detection
RERA reporting
AutoSet algorithm with AutoSet Response
AutoRamp with sleep onset detection
Advanced HumidAir technology
Enhanced Climate Control Auto
Expiratory Pressure Relief (EPR™)
SmartStart™
Built-in wireless connectivity*

*Available only on specific AirSense 10 device models. Wireless communication depends on network availability.

Technical specifications

Dimensions (H x W x D) (Device and water tub)   116mm x 255mm x 150mm
Weight 1248g
Air filter Standard: Average arrestance: > 75% for ~7 micron dust Hypoallergenic: Efficiency: >98% for ~7-8 micron dust. >80% for ~0.5 micron dust.
Aircraft use Meets Federal Aviation Administration requirements for all phases of air travel.
Operating pressure range 4 to 20 cm H2O
Pressure level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 26.6 dBA with uncertainty of 2 dBA
Power level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 34.6 dBA with uncertainty of 2 dBA
Sound (Declared dual-number noise emission values in accordance with ISO 4871:1996.)
Air tubing ClimateLineTM Air SlimLineTM Standard
Length 6'6” 6’ 6’ 6”
Inner diameter 0.6" 0.6" 0.75"
Electromagnetic compatibility Complies with all EMC requirements according to IEC60601-1-2:2007 for residential, commercial and light industry environments. It is recommended that mobile communication devices be kept at least 1m away.
